The TM5000 is a highly efficient and economical low cost automatic concrete block and paver making machine, specifically engineered for the versatile production of high-quality curbstones, paver blocks, hollow blocks, and solid bricks. Combining a robust German-standard steel frame with advanced Siemens PLC control and a Japanese Yuken hydraulic system, it delivers exceptional operational stability and precise molding.

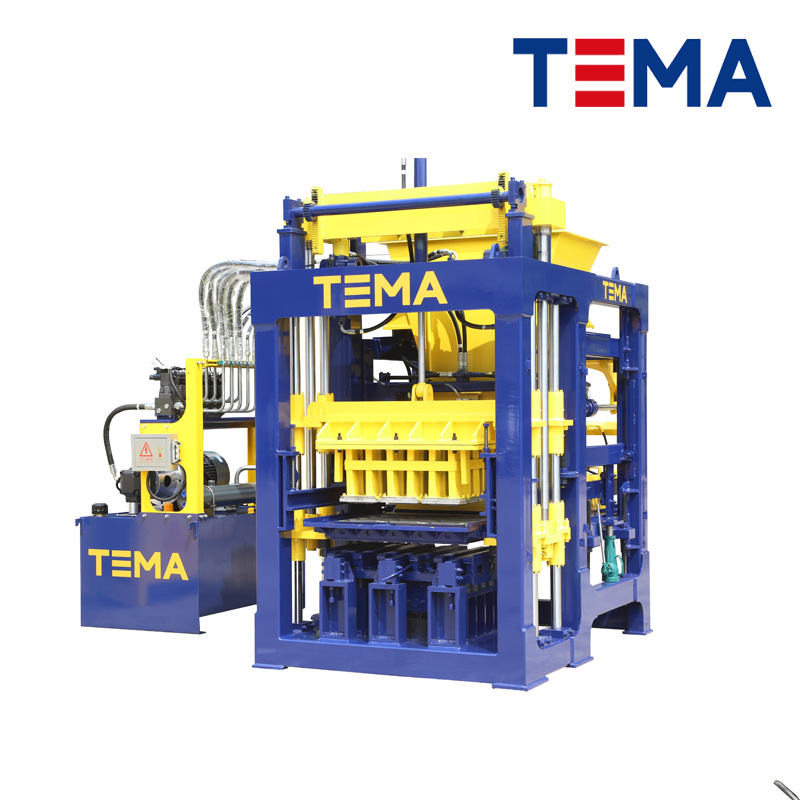

TM5000 Economical Concrete Block and Paver Making Machine
The TM5000 is an economical and highly efficient machine specifically designed for the production of high-quality curbstones, paver blocks, hollow blocks, and other concrete products.
| TM5000 Specifications | |
|---|---|
| Pallet Size: 1100×580×30 mm | Vibration Force: 2×9kw (Frequency Inverter Controlled) / 80-90 KN |
| Forming Area: 1050×520 mm | Control System: Siemens PLC Control, Online Remote Service |
| Products Height: 50-200 mm | Feeder Car Design: Double swing arms driven (Siemens motor) |
| Cycle Time: 15-20 Seconds | Hydraulic System: 18.5kw (Japanese Yuken valves) |
| Machine Gross Weight: 7.5 Ton | Power Consumption: 38.15 kW |
| Product Type | Size (mm) | Pieces/Cycle | Production / 8-10 hours |
|---|---|---|---|
| Hollow Block | 400×200×200 | 5 | 6,000 - 7,500 |
| Hollow Block | 400×150×200 | 6 | 7,000 - 9,000 |
| Rectangular Paver | 200×100×60 | 20 | 20,000 - 30,000 |
| Zigzag Paver | 225×112.5×60 | 16 | 16,000 - 24,000 |
By simply replacing the molds, the TM5000 machine serves as a multi-purpose manufacturing equipment for various concrete blocks:
The TM5000 is a versatile concrete block and paver making machine. By changing the molds, it can efficiently produce hollow blocks, solid cement bricks, interlocking pavers, curbstones, and retaining wall blocks.
For standard 400x200x200mm hollow blocks, this automatic cement brick machine yields about 6,000 to 7,500 pieces per 8-10 hour shift, making it an excellent investment for medium to large-scale mass production.
Yes. Our brick manufacturing equipment is designed to utilize crushed stone, sand, cement, as well as coal fly ash, cinder, slag, and other industrial wastes, helping you save on material costs while producing high-quality masonry products.
